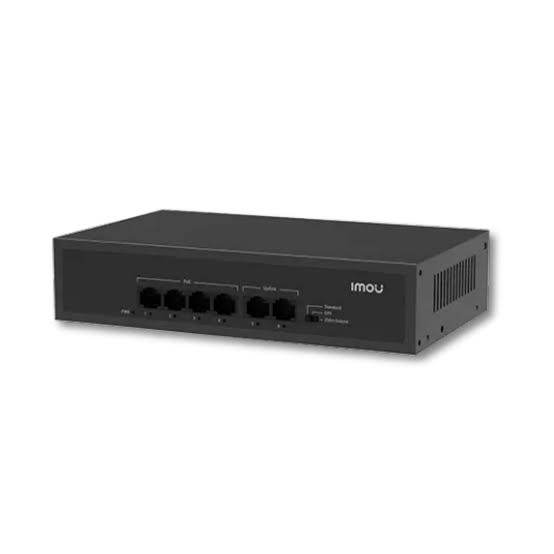

IMOU Switch SF106P
IMOU Switch SF106P – 4-Port PoE Switch with 250m Long-Range Transmission
The IMOU SF106P is an unmanaged 6-port PoE switch featuring 4× 10/100Mbps PoE ports and 2× 10/100Mbps uplink ports. Compliant with IEEE 802.3af/at, it delivers up to 30W per port with a total power budget of 45W, powering IP cameras over a single Ethernet cable. A one-click Extend Mode enables transmission up to 250m, ideal for parking lots or warehouse corners.
Key Features:
4 PoE Ports + 2 Uplink Ports: 4× 10/100Mbps PoE ports (≤30W per port) and 2× 10/100Mbps uplink ports for simultaneous NVR and router connections.
802.3af/at Compliant: Auto-detects PoE-enabled devices and delivers power without extra adapters.
45W Total PoE Budget: Intelligently manages power across connected cameras.
250m Long-Range PoE: One-click Extend Mode extends transmission to 250m for flexible camera placement.
Plug & Play: No configuration required; cameras power on automatically once connected.
1.2Gbps Switching Capacity: Handles video data from all connected cameras without bottlenecking.
4KV Lightning Protection: Common Mode 4KV and Differential Mode 2KV surge protection shields the network from electrical surges and storms.
Fanless Metal Casing: Dissipates heat efficiently for silent, reliable 24/7 operation in temperatures from -10°C to 55°C.
In the Box: PoE Switch ×1, Power Cord ×1, Quick Start Guide ×1, Regulatory Information ×1.
Power up to 4 PoE cameras with 250m reach—order the IMOU Switch SF106P today!
