IMOU Switch SF110P

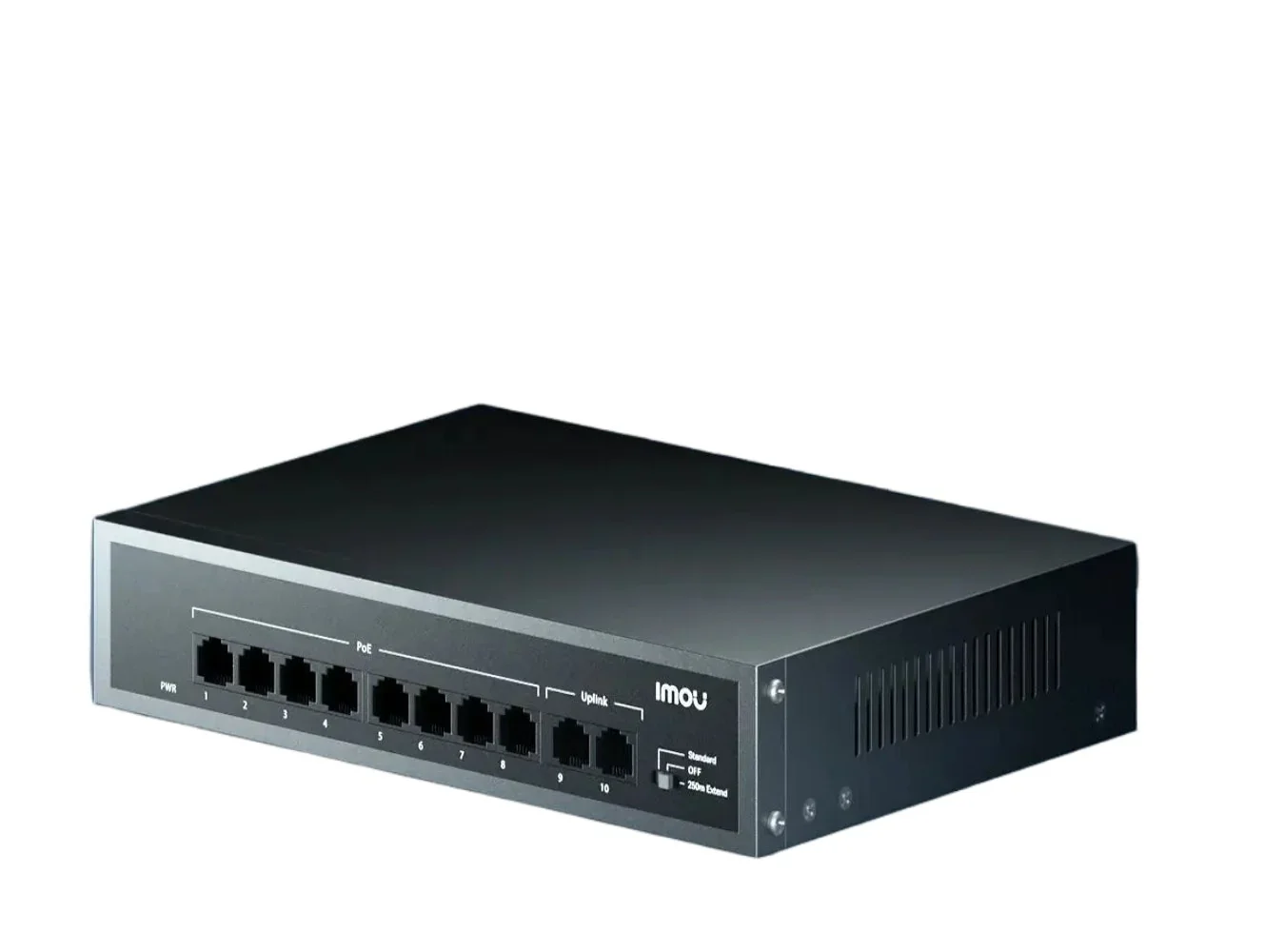

IMOU Switch SF110P – 8-Port PoE Switch with 250m Long-Range Transmission
The IMOU SF110P is an unmanaged 8-port PoE switch that powers and connects IP cameras over a single Ethernet cable. It supports 802.3af/at PoE with a 65W power budget and extends transmission up to 250m on Cat5e or above, eliminating the need for separate power adapters at each camera. Its fanless metal housing ensures stable 24/7 operation in temperatures from -10°C to 55°C.
Key Features:
8 PoE Ports + 2 Uplink Ports: 8 × 10/100Mbps PoE ports and 2 × 10/100Mbps uplink ports for connecting to a router or NVR.
802.3af/at Compliant: Delivers up to 30W per port (ports 1–4) with a total power budget of 65W, sufficient to power up to 8 PoE cameras simultaneously.
250m Long-Range PoE: Extended transmission mode supports cable runs up to 250m, enabling flexible camera placement across larger properties.
Plug & Play: Requires no configuration or management software; cameras power on automatically once connected.
1.6 Gbps Switching Capacity: Handles video data from all 8 cameras without bottlenecking or frame drops.
Wide Compatibility: Works with IMOU, Dahua, X-Security, and ONVIF-compliant IP cameras.
Fanless Metal Housing: Dissipates heat without a fan for silent, reliable 24/7 operation.
Imou Life App & PC Software: Manage and monitor connected cameras remotely via smartphone or PC.
In the Box: PoE Switch ×1, Power Cord ×1, Ethernet Cable ×1, Installation Material ×1, Quick Start Guide ×1.
Expand your surveillance system with 8-port PoE power and 250m reach—order the IMOU Switch SF110P today!
