IMOU Video DoorPhone VDP7 POE

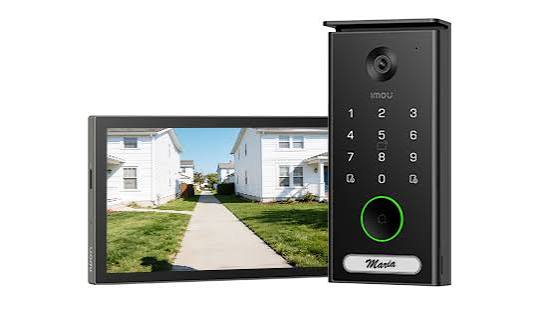

IMOU VDP7 PoE – 5MP 3K Video Intercom with 7" Touch Screen and PoE

The IMOU VDP7 PoE combines a 5MP outdoor door station with a 7-inch indoor touchscreen monitor, transmitting both power and data over a single Ethernet cable via IEEE 802.3af/at PoE. The door station captures 2880 × 1620 video with a 149° diagonal field of view and IR night vision up to 15m, while the indoor monitor provides a 1024 × 600 touchscreen for visitor viewing and access control.

Key Features:

  • 5MP 3K Ultra HD Door Station: 1/3" Progressive CMOS sensor captures 2880 × 1620 video at up to 15fps with H.265/H.264 compression and a 2.3mm lens.

  • PoE Power & Network: IEEE 802.3af/at support delivers power and data through a single Ethernet cable for streamlined installation.

  • 7" Indoor Touch Screen: 1024 × 600 monitor enables visitor viewing, two-way audio, and one-touch unlocking.

  • 4 Unlocking Methods: Open doors via RFID card, password, indoor monitor, or remotely through the IMOU Life app.

  • Smart Entrance Detection: Human, vehicle, and loitering detection send relevant alerts and reduce false notifications.

  • Dual Lock Control: Manages two independent lock channels plus two exit-button channels for multi-entry setups.

  • Local Storage: MicroSD card slot supports up to 512GB for extended video recording without subscription fees.

  • Tamper Alarm & Privacy Masking: Built-in tamper detection triggers alerts, while custom privacy zones block sensitive areas from view.

  • IP65 Weatherproof Door Station: Withstands rain, dust, and temperatures from -20°C to +50°C.

In the Box: VDP7 POE Door Station ×1, Pre-installed Wall Mounting Bracket ×1, Door Station Drilling Template ×1, Indoor Monitor ×1, Monitor Wall Mounting Bracket ×1, Monitor Drilling Template ×1, Female Wire Harness ×1, Screw Pack ×2, Wires and Connectors Pack ×1, L-shaped Wrench ×1, Name Tag ×2, Card ×3, Quick Start Card ×1, Regulatory Information ×1.

Upgrade your entrance with 3K PoE video intercom clarity—order the IMOU Video DoorPhone VDP7 PoE today!
